KEYLESS ENTER-N-GO IGNITION

This feature allows the driver to operate the ignition switch with the push of a button as long as the key fob is in the passenger compartment.

The START/STOP ignition button has four operating positions, three of which are labeled and will illuminate when in position. The three positions are OFF, ACC, and ON/RUN. The fourth position is START. During START, RUN will illuminate.

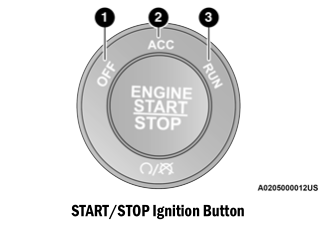

Dodge Charger. IGNITION SWITCH

  1. OFF
  2. ACC
  3. ON/RUN

The push button ignition can be placed in the following modes:

OFF

  • The engine is stopped.
  • Some electrical devices (e.g. central locking, alarm, etc.) are still available.

ACC

  • Engine is not started.
  • Some electrical devices are available (e.g. power windows).

ON/RUN

  • Driving position.
  • All electrical devices are available (e.g. climate controls, etc.).

START

  • The engine will start (when foot is on the brake pedal).

NOTE:

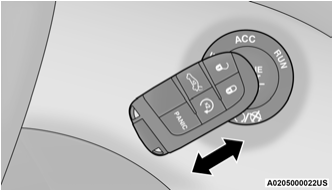

If the ignition switch does not change the mode by pushing the button, the key fob may have a low or depleted battery. In this situation, a back up method can be used to operate the ignition switch. Put the nose side (side opposite of the emergency key) of the key fob against the START/STOP ignition button and push to operate the ignition switch.

Dodge Charger. IGNITION SWITCH

WARNING!

  • When exiting the vehicle, always remove the key fob from the vehicle and lock your vehicle.
  • Never leave children alone in a vehicle, or with access to an unlocked vehicle.
  • Allowing children to be in a vehicle unat- tended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Children should be warned not to touch the parking brake, brake pedal or the gear selector.
  • Do not leave the key fob in or near the vehicle, or in a location accessible to chil- dren, and do not leave the Keyless Enter-N-Go Ignition in the ON/RUN position. A child could operate power windows, other controls, or move the vehicle.
  • Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves. Always remove key fob from the vehicle and lock all doors when leaving the vehicle unattended.

NOTE:

  • When opening the driver's door with the igni- tion in ON/RUN (engine not running), a chime will sound to remind you to place the ignition in the OFF position. In addition to the chime, the message will display “Ignition Or Acces- sory On” in the cluster.
  • For more information on proper engine starting procedures.

    SENTRY KEY

    The Sentry Key Immobilizer system prevents unauthorized vehicle operation by disabling the engine. The system does not need to be armed or activated...

    REMOTE START (IF EQUIPPED)

    This system uses the key fob to start the engine conveniently from outside the vehicle while still maintaining security. Remote Start is used to defrost windows in cold weather, and to reach a comfortable climate in all ambient conditions before the driver enters the vehicle...
