Dodge Charger: UCONNECT MODES / Steering Wheel Audio Controls

Dodge Charger 2011-2024 Owner's Manual / MULTIMEDIA / UCONNECT MODES / Steering Wheel Audio Controls

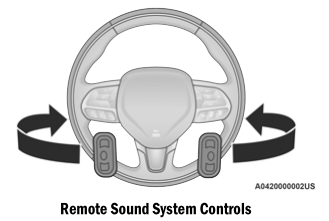

The remote sound system controls are located on the rear surface of the steering wheel at the three and nine o’clock positions.

Dodge Charger. Steering Wheel Audio Controls

The right-hand control is a rocker-type switch with a push button in the center and controls the volume and mode of the sound system. Pushing the top of the rocker switch will increase the volume, and pushing the bottom of the rocker switch will decrease the volume.

Pushing the center button will make the radio switch between the various modes available (AM/FM/SXM or Media, etc.).

The left-hand control is a rocker-type switch with a push button in the center. The function of the left-hand control is different depending on which mode you are in.

The following describes the left-hand control operation in each mode:

Radio Operation

Pushing the top of the switch will Seek Up for the next available station and pushing the bottom of the switch will Seek Down for the next available station.

The button located in the center of the left-hand control will tune to the next preset station that you have programmed in the radio presets.

Media Mode

Pushing the top of the switch skips to the next track on the selected media (AUX/USB/ Bluetooth®). Pushing the switch up twice will go forward two tracks. Pushing the bottom switch goes to the beginning of the current track, or the beginning of the previous track if it is within eight seconds after the current track begins to play. Double pressing the bottom button switch will skip to the previous track if it is after eight seconds into the current track.

    UCONNECT MODES

    ..

    Radio Mode

    Radio Controls Radio Bands Preset Radio Stations View Next Preset Radio Stations Status Bar Browse Button Seek Down Tune Button Seek Up Audio Settings Bottom Bar The radio is equipped with the following modes: AM FM SiriusXM® Satellite Radio (if equipped) Press the Radio button on the touchscreen to enter the Radio Mode...
