Dodge Charger: ENGINE COMPARTMENT / 3.6L Engine

Dodge Charger 2011-2022 Owner's Manual / SERVICING AND MAINTENANCE / ENGINE COMPARTMENT / 3.6L Engine

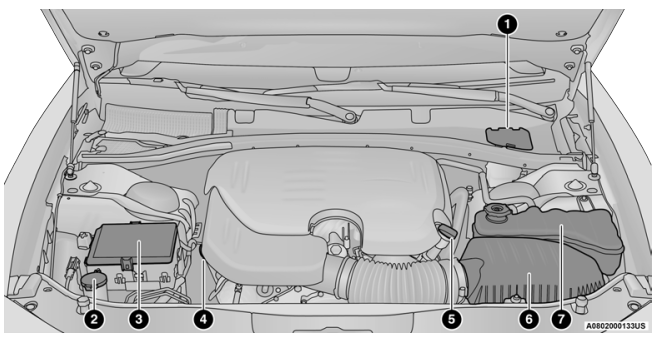

Dodge Charger. 3.6L Engine

  1. Brake Fluid Reservoir Access Cover
  2. Washer Fluid Reservoir Cap
  3. Power Distribution Center (Fuses)
  4. Engine Oil Dipstick
  5. Engine Oil Fill
  6. Engine Air Cleaner Filter
  7. Engine Coolant Pressure Reservoir

    ENGINE COMPARTMENT

    ..

    5.7L Engine

    ..

    Other information:

    Dodge Charger 2011-2022 Owner's Manual: A/C Button


    Press and release this button on the touchscreen, or push the button on the faceplate to change the current setting. The A/C indicator illuminates when A/C is on. Recirculation Button Press and release this button to change the system between recirculation mode and outside air mode...

    Dodge Charger 2011-2022 Owner's Manual: Exhaust System


    The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust system. If you notice a change in the sound of the exhaust system; or if the exhaust fumes can be detected inside the vehicle; or when the underside or rear of the vehicle is damaged; have an authorized technician inspect the complete exhaust system and adjacent body areas for broken, damaged, deteriorated, or mispositioned parts...

    Categories

    Headlight Switch

    The headlight switch is located on the left side of the instrument panel. This switch controls the operation of the headlights, parking lights, instrument panel lights, and fog lights (if equipped).

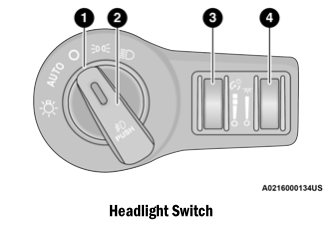

    Dodge Charger. Headlight Switch
