Dodge Charger: INSTRUMENT CLUSTER DISPLAY / Location And Controls

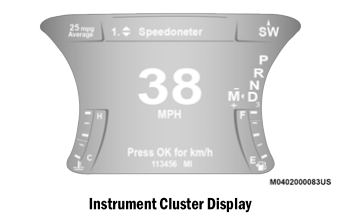

The instrument cluster display features an interactive display which is located
in the instrument cluster.
This system conveniently allows the driver to select a variety of useful information
by pushing the arrow buttons located on the left side of the steering wheel. The
instrument cluster display menu items consist of the following:
Speedometer
- Vehicle Info
- Driver Assist — If Equipped
- Fuel Economy
- Trip
- Audio
- Messages
- Screen Setup

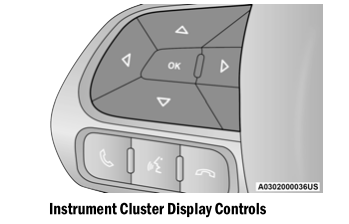

The system allows the driver to select information by pushing the following buttons
mounted on the steering wheel:
Up And Down Arrow Buttons:
Using the up or down
arrow button allows you to cycle through
the Main Menu Items.
Changes the Main Screen area and Menu Title area.
Left And Right Arrow Buttons:
Using the left or right
arrow button allows you to cycle through
the submenu items of the Main menu item.
NOTE:
- Holding the up or down
or left or
right
arrow button will continuously
loop through the currently selected menu or options presented on the screen.
- Upon returning to a main menu, the last submenu screen viewed within that
main menu will be displayed.
OK Button:
For Digital Speedometer:
- Pushing the OK button changes units (mph or km/h).
For Screen Setup:
- OK button allows user to enter menu and submenus.
- Within each submenu layer, the up
and down
arrow buttons will allow the user
to select the item of interest.
- Pushing the OK button makes the selection and a confirmation screen
will appear (returning the user to the first page of the submenu).
- Pushing the left arrow
button will exit each submenu layer and return to the main menu.
Your vehicle is equipped with an instrument cluster display, which offers useful
information to the driver. With the ignition in the OFF mode, opening/closing of
a door will activate the display for viewing, and display the total miles, or kilometers,
in the odometer...
Oil Change Required
Your vehicle is equipped with an engine oil change indicator system. The “Oil
Change Required” message will display in the instrument cluster display for five
seconds after a single chime has sounded, to indicate the next scheduled oil change
interval...
