Dodge Charger: VEHICLE MAINTENANCE / Rear Interior Fuses

Dodge Charger 2011-2024 Owner's Manual / SERVICING AND MAINTENANCE / VEHICLE MAINTENANCE / Rear Interior Fuses

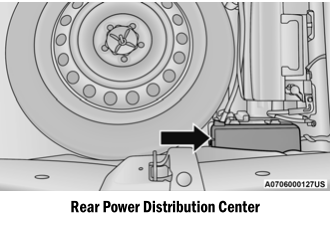

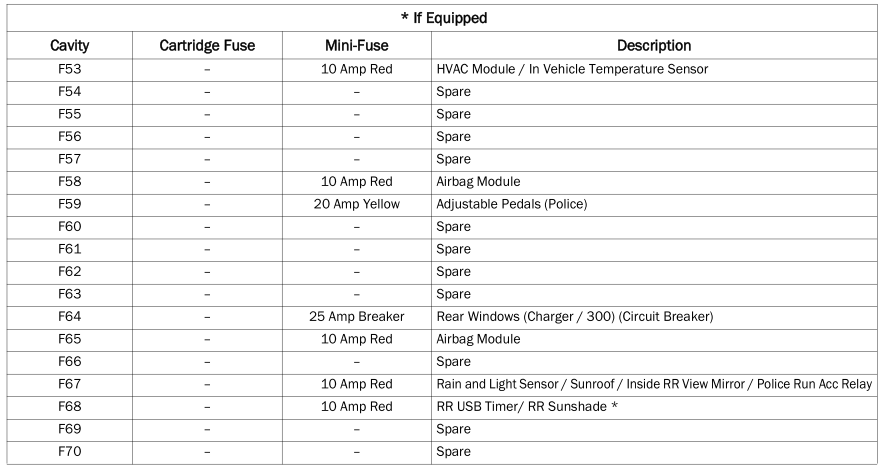

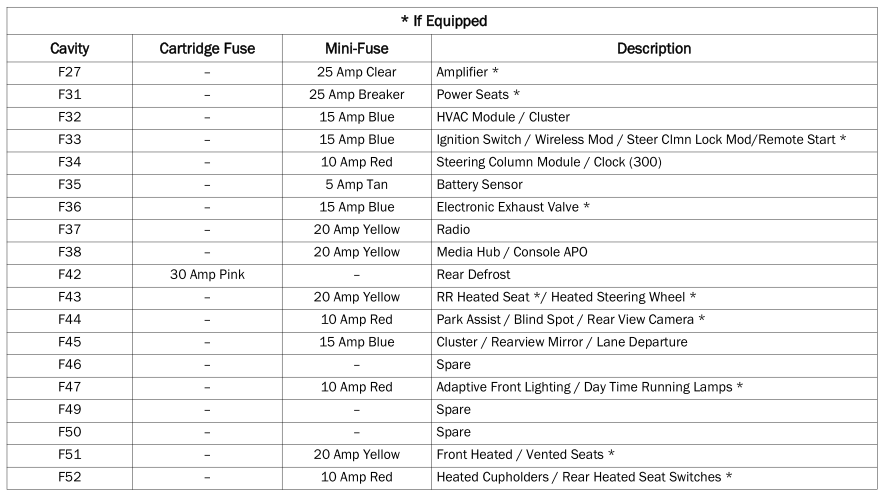

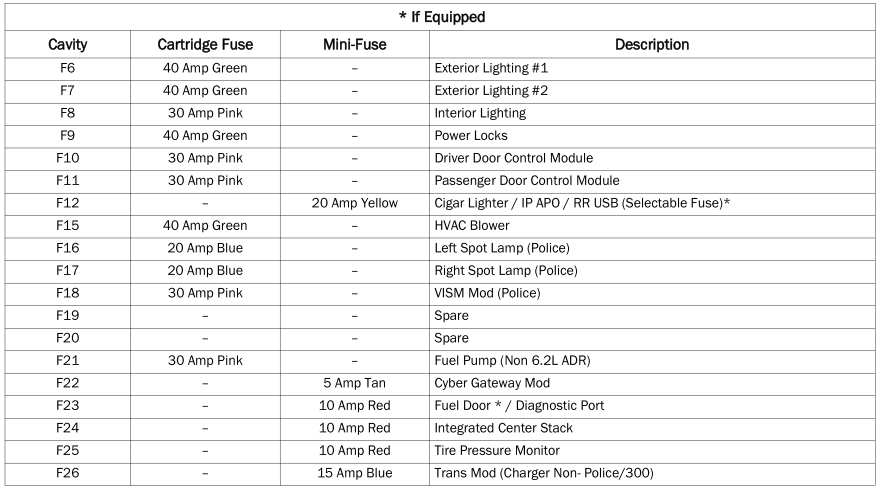

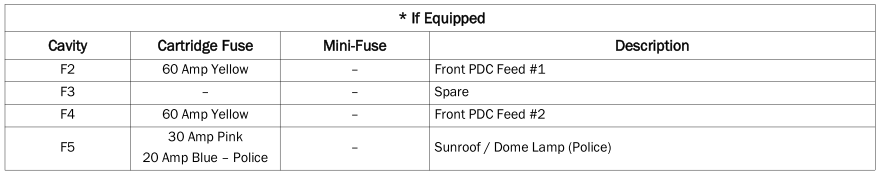

There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.

Dodge Charger. Rear Interior Fuses

CAUTION!

  • When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
  • When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.

Dodge Charger. Rear Interior Fuses

Dodge Charger. Rear Interior Fuses

Dodge Charger. Rear Interior Fuses

Dodge Charger. Rear Interior Fuses
