Dodge Charger. Timers

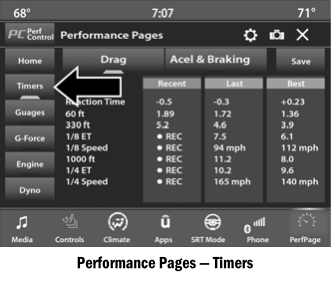

When the Timers Page is selected, you will be able to select the Drag or Accel & Braking tabs. The following will be displayed:

  • Recent

    The most recent successful run of perfor- mance timers. If a run does not complete within the timers limit, or is aborted, the values shown will revert to the most recent valid run.

  • Last

    The last recorded successful run of perfor- mance timers.

  • Best

    The best recorded run of performance timers, except for braking data.

  • Save

    Pressing the Save button will let you save the visible page, Recent/Last/Best. Any saved run over 10 will overwrite the last saved run for Uconnect system storage. The operation of the Save feature is listed below:

NOTE:

Pressing the Camera icon in the upper right corner of the screen at any time will save a screenshot of the screen currently being viewed to the connected USB device.

Dodge Charger. Timers

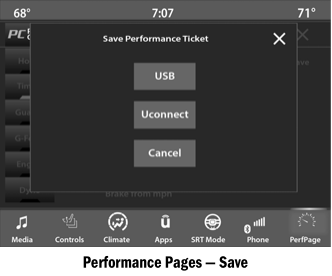

  • With a USB jump drive installed, press the USB button to save to the jump drive.
  • Press the Uconnect button to save the current timer data to the Owner’s web page.

NOTE:

The Uconnect option will be grayed out or missing if the vehicle does not have a valid Uconnect account associated with it.

  • Press the Cancel button to return to the Timers page.

The tabs on the Timers page contain the timers listed below:

  • Reaction Time

    Measures the driver's reaction time for launching the vehicle against a simulated drag strip timing light (behavior modeled after 500 Sportsman Tree) displayed in the instrument cluster display.

NOTE:

Drag timers (RT, 60 ft [20 m], 330 ft [100 m], 1/8 mile [200 m], 1000 ft [300 m], and 1/4 mile [400 m]).

NOTE:

Accel & Braking timers (0-60 mph [0-100 km/h], 0-100 mph [0-160 km/h], Brake from mph [km/h], and Brake Distance ft [meters]).

  • 0-60 mph (0-100 km/h)

    Displays the time it takes for the vehicle to go from 0 to 60 mph (0 to 100 km/h).

  • 0-100 mph (0-160 km/h)

    Displays the time it takes for the vehicle to go from 0 to 100 mph (0 to 160 km/h).

  • 60 ft (20 m) ET

    Displays the time it takes the vehicle to go 60 feet (20 m).

  • 330 ft (100 m) ET

    Displays the time it takes the vehicle to go 330 feet (100 m).

  • ⅛ Mile (200 m) ET

    Displays the time it takes for the vehicle to go ⅛ mile (200 m).

  • ⅛ Mile (200 m) mph

    Displays the vehicle speed at the time ⅛ mile (200 m) was reached.

  • 1000 ft (300 m) ET

    Displays the time it takes the vehicle to go 1000 ft (300 m).

  • ¼ Mile (400 m) ET

    Displays the time it takes for the vehicle to go ¼ mile (400 m).

  • ¼ Mile (400 m) mph

    Displays the speed the vehicle was at when ¼ mile (400 m) was reached.

  • Brake Distance ft (meters)

    Displays the distance it takes the vehicle to make a complete stop.

NOTE:

The distance measurement will be aborted if the brake pedal is released or the parking brake is engaged, before the vehicle comes to a complete stop.

  • Brake from mph (km/h)

    Displays the speed the vehicle is traveling when the brake pedal is pressed.

NOTE:

Brake Distance and Speed timers only display "ready" when vehicle is traveling at greater than 30 mph (48 km/h).
