Dodge Charger: TIRES / Steps For Determining Correct Load Limit—

Dodge Charger 2011-2023 Owner's Manual / SERVICING AND MAINTENANCE / TIRES / Steps For Determining Correct Load Limit—

(1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.

(4) The resulting figure equals the available amount of cargo and luggage load capacity. For example, if “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400-750 (5x150) = 650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.

Metric Example For Load Limit

For example, if “XXX” amount equals 635 kg and there will be five 68 kg passengers in your vehicle, the amount of available cargo and luggage load capacity is 295 kg (635-340 (5x68) = 295 kg) as shown in step 4.

NOTE:

  • If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. The following table shows examples on how to calculate total load, cargo/ luggage, and towing capacities of your vehicle with varying seating configurations and number and size of occupants. This table is for illustration purposes only and may not be accurate for the seating and load carry capacity of your vehicle.
  • For the following example, the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Dodge Charger. Steps For Determining Correct Load Limit—

WARNING!

Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them.

    Tire Loading And Tire Pressure

    NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-pillar or the rear edge of the driver's side door. Check the inflation pressure of each tire, including the spare tire (if equipped), at least monthly and inflate to the recommended pressure for your vehicle...

    Tires — General Information

    ..

    Other information:

    Dodge Charger 2011-2023 Owner's Manual: Children Too Large For Booster Seats


    Children who are large enough to wear the shoulder belt comfortably, and whose legs are long enough to bend over the front of the seat when their back is against the seatback, should use the seat belt in a rear seat. Use this simple 5-step test to decide whether the child can use the vehicle’s seat belt alone: Can the child sit all the way back against the back of the vehicle seat? Do the child’s knees bend comfortably over the front of the vehicle seat – while the child is still sitting all the way back? Does the shoulder belt cross the child’s shoulder between the neck and arm? Is the lap part of the belt as low as possible, touching the child’s thighs and not the stomach? Can the child stay seated like this for the whole trip? If the answer to any of these questions was “no,” then the child still needs to use a booster seat in this vehicle...

    Dodge Charger 2011-2023 Owner's Manual: DRIVER MEMORY SETTINGS — IF EQUIPPED


    This feature allows the driver to save up to two different memory profiles for easy recall through a memory switch. Each memory profile saves desired position settings for the following features: Driver seat Easy Entry/Exit seat (if equipped) Side mirrors Power tilt/telescoping steering column (if equipped) A set of desired radio station presets NOTE: Your vehicle is equipped with two key fobs, each can be linked to either memory position 1 or 2...

    Categories

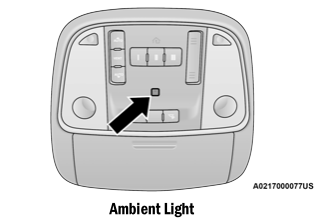

    Ambient Light — If Equipped
