Dodge Charger: AUXILIARY DRIVING SYSTEMS / Tire Pressure Monitoring Low Pressure Warnings

Dodge Charger 2011-2022 Owner's Manual / SAFETY / AUXILIARY DRIVING SYSTEMS / Tire Pressure Monitoring Low Pressure Warnings

Dodge Charger. Tire Pressure Monitoring Low Pressure Warnings The Tire Pressure Monitoring System (TPMS) Warning Light will illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or more of the four active road tires.

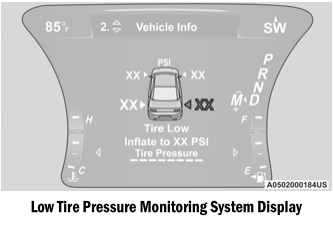

In addition, the instrument cluster will display an “Inflate to XX” message and a graphic showing the pressure values of each tire with the low tire pressure values shown in a different color.

Dodge Charger. Tire Pressure Monitoring Low Pressure Warnings

Should this occur, you should stop as soon as possible and inflate the tires with a low pressure condition (those shown in a different color in the instrument cluster graphic) to the vehicle’s recommended cold placard pressure inflation value as shown in the “Inflate to XX” message. Once the system receives the updated tire pressures, the system will automatically update, the graphic display in the instrument cluster will change color back to the original color, and the TPMS Warning Light will turn off.

The vehicle may need to be driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this information.

NOTE:

When filling warm tires, the tire pressure may need to be increased up to an additional 4 psi (28 kPa) above the recommended cold placard pressure in order to turn the TPMS Warning Light off.

Dodge Charger. Tire Pressure Monitoring Low Pressure Warnings

    Tire Pressure Monitoring System (TPMS)

    The Tire Pressure Monitoring System (TPMS) will warn the driver of a low tire pressure based on the vehicle recommended cold placard pressure. The tire pressure will vary with temperature by about 1 psi (7 kPa) for every 12°F (6...

    Service Tire Pressure System Warning

    If a system fault is detected, the Tire Pressure Monitoring System (TPMS) Warning Light will flash on and off for 75 seconds and then remain on solid...
